LED Edge Lighting | AI-6156A

RoHS compliant

Characteristics

AI-6156A

  • Connectable to Light guide panel(5mm), 6 LEDs are utilized per 60mm
  • White, 108lm
  • DC24V, 1.3W
  • Life span: about 40,000 hrs. * At 70% of initial output

Unit Specifications

ItemRatingsUnit
Input VoltageDC24V
Power Consumption *1.3W
Total Luminous Flux *(108)lm
Unit Length60 to 1200mm
Operating Temperature-10 to +60°C
Color Temperature(5000)K

* Value for 60mm length
Attention 1) Nonfreezing, noncondensing.
Attention 2) LEDs have some colors by LED characteristics.

ItemRatingsUnit
Input VoltageDC24V
Power Consumption *10.75W
Emitting ColorRedGreenBluelm
Dominant Wavelength *2616523468mm
Luminous Intensity *1(1.8)(4.1)(1.2)cd
Unit Length310 to 1,210mm
LED *16pcs
Operating Temperature *3 *4-10 to +60°C

*1 Value for 60mm length
*2 Standard Value
*3 Nonfreezing, noncondensing.
*4 Alluminum body temperature: Under 70°C
Attention) LEDs have some colors by LED characteristics.

Illuminance Distribution

* These are measured value, not under guarantee.

Dimensions

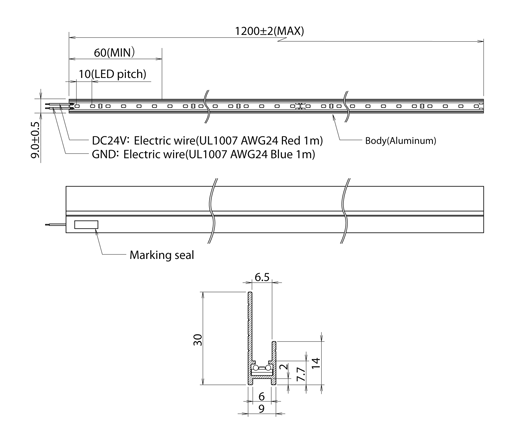

AI-6156A-L

AI-6156-L, Dimension

* Unit: mm

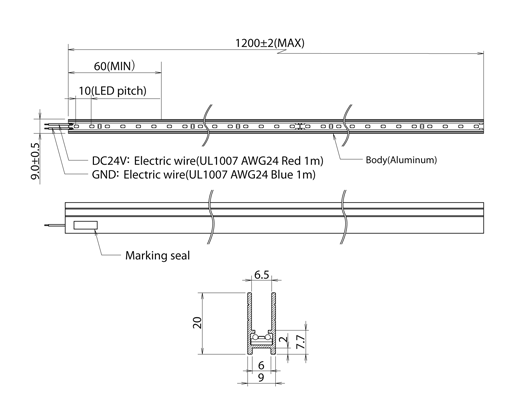

AI-6156A-C

AI-6156-C, Dimension

* Unit: mm

Part Number

 Thickness of light guide panelNumber of LEDsModelLength(mm)
5mm(5)6 LEDs(6)"L"(L)"C"(C)60 - 1200
AI-6156A-L
AI-6156A-C
