LED Bulb(BA15s)

PN: AL-22

Standard Model
RoHS Compliant

Characteristics



AL-22W

  • Light bulb type LED, Base type: BA15s, Front diameter: 22mm
  • White: 48lm, Red: 9lm
  • DC10-16V, 0.8W
  • Life span: about 40,000 hrs. * At 70% of initial output
  • Splash proof IPX4

Unit Specifications

ItemSymbolRatingsUnit
WhiteWarmWhiteRed
Rated VoltageVDC10 - 16V
Power Consumption *1P0.8W
Illuminance *2E(56)(50)(11)lx
Total Luminous FluxΦ(48)(42)(9)lm
Operating Temperature RangeTopr-15 to +50°C
Weight-8.4g
Base type-BA15s-

*1 at DC12V
*2 Distance 0.5meter

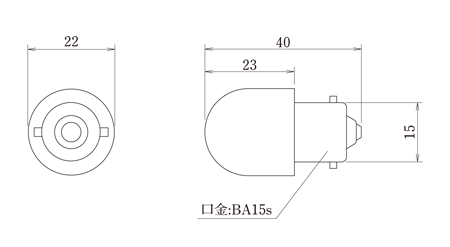

Dimensions

Bulb type LED Dimensions
* Unit: mm, Tolerance: ±0.2

Part Number

 Luminous ColorBase type
White(W)WarmWhite(L)Red(R)BA15s
AL-22W
AL-22L
AL-22R
